Outline
High voltage power supply for nuclear detection is a special power supply developed by our compan. A nuclear radiation detector is an electronic device that converts incident particles or radiation into electrical impulses。It is widely used in nuclear physics, particle physics, medicine, petroleum exploration logging, and in the field of industrial spectrometers, chromatography, mass spectrometry and so on. The probe of the nuclear radiation detector needs to be supplied with a high voltage power supply at work,Such as He3 neutron tube, scintillation detector photomultiplier tube, Geiger - Maitreya (G-M) counter, ionization chamber, proportional counter and so on.
Related Information
 Search:

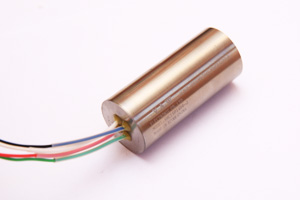

  • Name:Venus power supply module
    Category:Nuclear detection
    Types:High voltage power supply
    Output voltage:0~±600V
    Input voltage:12V
    Operating temperatur:-55℃~+125℃
    Mechanical dimension:Ф25.5*58.0
    Output polarity:positive
  • Name:WY25
    Category:Nuclear detection
    Types:High voltage power supply
    Output voltage:250~500V
    Input voltage:5V
    Operating temperatur:0℃~+50℃,-20℃~+85℃
    Mechanical dimension:Φ: 29.0MM * L:38.0MM
    Output polarity:negative
  • Name:MP series
    Category:Nuclear detection
    Types:High voltage power supply
    Output voltage:200~400V
    Input voltage:5V,7V,9V,12V,±12V,15V
    Operating temperatur:0℃~+50℃,-20℃~+85℃
    Mechanical dimension:Ф16.3*72.0 the standard,Ф16.0*68,Ф16.0*88.0
    Output polarity:positive,negative
  • Name:Special purpose HV power supply modules
    Category:Nuclear detection
    Types:High voltage power supply
    Output voltage:100~600V
    Input voltage:6V,7V,9V,12V,±12V,15V,18V
    Operating temperatur:0℃~+50℃,-20℃~+85℃,-55℃~+125℃,-55℃~+150℃,-55℃~+175℃,-55℃~+200℃,-55℃~+225℃
    Mechanical dimension:Ф54*17.5 Ф54*12.5
    Output polarity:positive,negative
  • Name:Special purpose HV power supply modules for nuclear exploration field
    Category:Nuclear detection
    Types:High voltage power supply
    Output voltage:200~400V
    Input voltage:6V,7V,9V,12V,±12V,15V,18V
    Operating temperatur:0℃~+50℃,-20℃~+85℃,-55℃~+125℃,-55℃~+150℃,-55℃~+175℃,-55℃~+200℃,-55℃~+225℃
    Mechanical dimension:imported imitation 22x84mm,More dimensions as described in the instructions
    Output polarity:positive,negative
  • Name:HS Series
    Category:Nuclear detection
    Types:High voltage power supply
    Output voltage:200~400V
    Input voltage:5V,7V,9V,12V,±12V,15V,18V
    Operating temperatur:0℃~+50℃,-20℃~+85℃,-55℃~+125℃,-55℃~+150℃,-55℃~+175℃,-55℃~+200℃,-55℃~+225℃
    Mechanical dimension:φ22x84mm
    Output polarity:positive,negative
  • Name:Subminiature Flat High Voltage Power Module(F series)
    Category:Nuclear detection
    Types:High voltage power supply
    Output voltage:200~400V
    Input voltage:5V,7V,12V,15V
    Operating temperatur:0℃~+50℃,-20℃~+85℃,-55℃~+125℃,-55℃~+150℃,-55℃~+175℃,-55℃~+200℃,-55℃~+225℃
    Mechanical dimension:type 1: L*W*H:33*22*8.9MM; type 2: L*W*H:33*25*14.5MM; type 3: L*W*H:38.2*22.2*8.9MM
    Output polarity:positive,negative
